| مكان المنشأ: | الولايات المتحدة الأمريكية |
| اسم العلامة التجارية: | Bently Nevada |
| إصدار الشهادات: | CO.CQ |
| رقم الموديل: | 330106-05-30-10-00 |

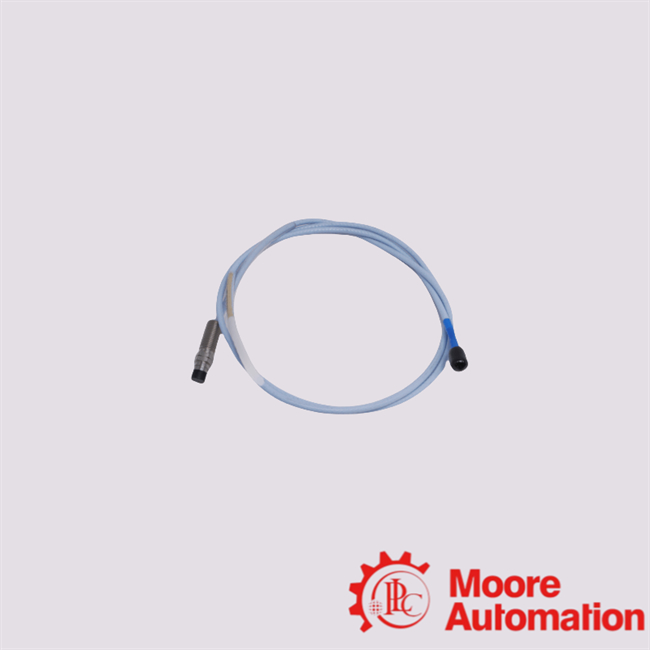

The Bently Nevada 330106-05-30-10-00 is a reverse mount proximity probe designed for the 3300 XL 8 mm eddy current sensor system.
It is primarily used for vibration and displacement measurements in bearing machinery, offering high accuracy and durability.
330106-05-30-10-00 Details
|
FAQ |
|
Q1: What is the reverse mount configuration? A reverse mount configuration means the sensing element of the probe faces away from the mounting surface. This orientation is ideal for applications where space constraints or the layout of the machinery demand a specific positioning. |
|
Q2: What is the purpose of the Miniature ClickLoc™ coaxial connector? The Miniature ClickLoc™ coaxial connector ensures reliable and secure connections with the monitoring system. This connector type is designed for quick and simple installation while providing stable signal transmission for accurate measurements. |
|
Q3: What materials are used in the probe construction? The probe body uses stainless steel, providing durability and corrosion resistance. The probe tip is made from Polyphenylene Sulfide (PPS), and the sealing material consists of a Viton® O-ring. |
|
Q4: What is the operating temperature range of the probe? The probe operates effectively between -40 to +95°C (-40 to +204°F), making it suitable for various industrial environments. |
Inquiry now: miya@mvme.cn
| 330104-00-20-10-02-00 | 330104-00-14-10-01-05 | 330101-00-18-10-02-CN |
| 330104-00-20-10-01-CN | 330103-00-07-10-12-05 | 330101-00-18-10-02-00 |
| 330104-00-20-05-02-00 | 330103-00-07-10-02-00 | 330101-00-17-10-02-CN |
| 330104-00-18-10-02-00 | 330103-00-07-05-02-00 | 330101-00-16-10-02-00 |
| 330104-00-16-10-02-CN | 330103-00-06-15-02-CN | 330101-00-15-10-02-00 |
| 330104-00-16-10-02-00 | 330103-00-06-10-02-CN | 330101-00-12-10-02-05 |
| 330104-00-15-10-02-00 | 330101-00-28-05-02-00 | 330101-00-12-10-01-CN |
| 330104-00-15-10-01-CN | 330101-00-20-50-02-05 | 330101-00-08-20-02-05 |
| 330104-00-15-05-02-00 | 330101-00-20-10-02-05 | 330101-00-08-10-02-00 |
| 330104-00-14-10-02-05 | 330101-00-19-10-02-00 | 330101-00-08-05-02-05 |
