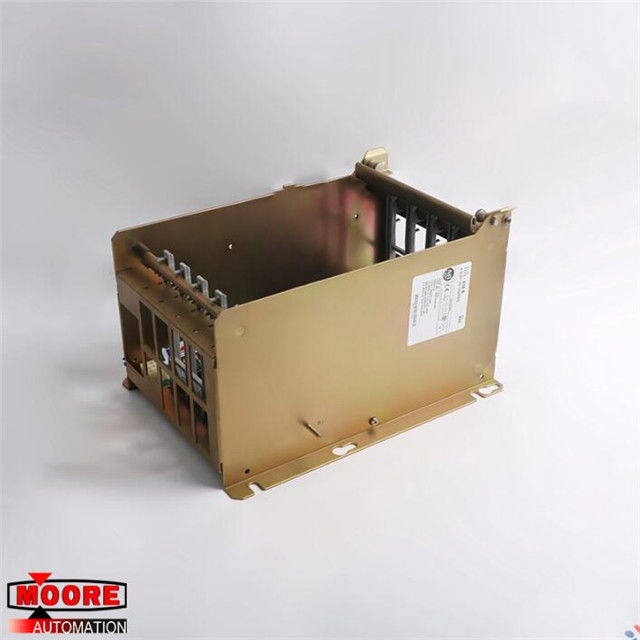

1771-A1B 1771-A1B Allen Bradley AB 4 فتحات تركيب الشاسيه I / O رف التركيب
⇒ انقر هنا للحصول على سعر جيد 1771-أ 1 ب
العلامة التجارية / الشركة المصنعة | ألين برادلي / الولايات المتحدة الأمريكية |
رقم القطعة |
1771-أ 1 ب |
رقم الجزء البديل | 1771-أ 1 ب |
وصف | محرك سيرفو |
الأبعاد |
31.5x23x19.5 سم |
وزن | 3.6 كجم |
تفاصيل المنتج
The 1771-A1B is an AB PLC-5 Chassis . 1771-A1B هو هيكل AB PLC-5. The AB 1771-A1B chassis is the backbone of every AB PLC-5 programmable controller system. هيكل AB 1771-A1B هو العمود الفقري لكل نظام تحكم مبرمج AB PLC-5. This chassis provides a communication path between various I/O modules and either the controller or the I/O adapter module. يوفر هذا الهيكل مسار اتصال بين وحدات الإدخال / الإخراج المختلفة وإما وحدة التحكم أو وحدة محول الإدخال / الإخراج. 1771-A1B is a universal and compact enclosure for the processor, power-supply modules, remote and extended-local I/O adapter modules, and I/O modules. 1771-A1B عبارة عن حاوية شاملة وصغيرة للمعالج ووحدات تزويد الطاقة ووحدات مهايئ الإدخال / الإخراج المحلي البعيد والموسع ووحدات الإدخال / الإخراج. 1771-A1B chassis has 4 slots for mounting various modules. يحتوي هيكل 1771-A1B على 4 فتحات لتركيب وحدات مختلفة. The far-left slot of 1771-A1B chassis is reserved for either the processor or adapter module. الفتحة الموجودة في أقصى اليسار من هيكل 1771-A1B محجوزة إما للمعالج أو وحدة المحول. The other slots in the chassis are compatible with communication modules, I/O modules, and power-supply modules. تتوافق الفتحات الأخرى في الهيكل مع وحدات الاتصال ووحدات الإدخال / الإخراج ووحدات الإمداد بالطاقة. It is crucial to follow the compatibility tables for each PLC-5/1771 module. من الضروري اتباع جداول التوافق لكل وحدة PLC-5/1771. Please note the 1771-A1B is part of series B. Power supplies 1771-P1, -P2, -P7 and -PS7 can be mounted on the left side plate of the 1771-A1B chassis. يرجى ملاحظة أن 1771-A1B جزء من السلسلة B. يمكن تثبيت إمدادات الطاقة 1771-P1 و -P2 و -P7 و -PS7 على اللوحة الجانبية اليسرى للهيكل 1771-A1B.
The 1771-A1B chassis is designed for panel mount installation. تم تصميم هيكل 1771-A1B لتركيب لوحة التثبيت. 1771-A1B chassis can receive power through processors with integral power supplies that provide 2 to 4 amps, power supply modules that provide 3 to 8 amps, and external power supplies that provide 6.5 to 16 amps. يمكن أن يستقبل هيكل 1771-A1B الطاقة من خلال معالجات مزودة بمصادر طاقة متكاملة توفر من 2 إلى 4 أمبير ، ووحدات تزويد الطاقة التي توفر من 3 إلى 8 أمبير ، وإمدادات الطاقة الخارجية التي توفر 6.5 إلى 16 أمبير. The largest back-plane current for the 1771-A1B is 16 amps operating at 5 Volts DC. أكبر تيار خلفي للطائرة 1771-A1B هو 16 أمبير تعمل عند 5 فولت DC. The 1771-A1B chassis must be connected to a central ground bus via grounding studs situated on the chassis itself. يجب توصيل الهيكل 1771-A1B بحافلة أرضية مركزية عبر دعامات التأريض الموجودة على الهيكل نفسه. The chassis' power supply is configured via the configuration jumper. يتم تكوين مصدر طاقة الهيكل عن طريق وصلة التكوين. The jumper has two positions: "N" - position for external power supply, and "Y" - position for power-supply module or processor with and an integral power supply. يحتوي الموصل على موقعين: "N" - موضع لمصدر الطاقة الخارجي ، و "Y" - موضع لوحدة تزويد الطاقة أو المعالج مع ومصدر طاقة متكامل. 1771-A1B chassis cannot be powered with both a power-supply module and an external power supply at the same time. لا يمكن تشغيل الشاسيه 1771-A1B مع وحدة تزويد الطاقة ومصدر طاقة خارجي في نفس الوقت.
لماذا تختار مور؟
The reason is simple. السبب بسيط. We offer the best value on quality industrial equipment covered by industry leading buyer protection. نحن نقدم أفضل قيمة للمعدات الصناعية عالية الجودة التي تغطيها حماية المشتري الرائدة في الصناعة.
يقوم فريق المبيعات في amikon بفحص الويب باستمرار للتأكد من أننا نقدم أقل الأسعار الممكنة.
ومع ذلك ، إذا كنت تعتقد أنه يمكننا القيام بعمل أفضل ، فلا تتردد في تقديم عرض على أي من منتجاتنا.
We pride ourselves on saving you money! نحن نفخر بتوفير المال! Here is how to make an offer. إليك كيفية تقديم عرض.
The Offers Team does its best to respond to offers in a timely manner. يبذل فريق العروض قصارى جهده للرد على العروض في الوقت المناسب. Typical turn-around time for an offer is 24 hours. وقت الاستجابة المعتاد للعرض هو 24 ساعة.
